Trailers

offer

Trailer PLI35-5021

2

It is a safe and proven means to transport the car to any place. With integrated overrun gangways, the transported vehicle can easily enter or go down. It is suitable for both personal (individual) and fully professional use (car workshops, roadside assistance).

dmc icon
up to 3500 kg
trailer length icon
5354mm
trailer width icon
2160mm

TRAILER WITH INTEGRATED OVERRUNS A COMFORTABLE SOLUTION




It is the smallest of car carriers with a GVW of 3,500 kg. The vehicle has a tilting platform with integrated overrun gangways that make up a approach angle of 12.5°. Overrun gangways with ramps are made of perforated and pressed sheet of the "LOHR” type. The model is equipped with the LIGHT SIDE system, which is responsible for tilting the rear lamps, which protects them from possible damage when entering or going down the car. The overrun frame tilts by gravity.





LORRIES car transporter trailer Anhänger tow truck trailer with integrated ramps 3500 kg 5 m

SOLID CONSTRUCTION




The frame and body of the model are fully welded, which affects their strength and guarantees the reliability of the vehicle. The structure is protected by hot galvanizing, with which the steel receives a protective layer that strengthens it against mechanical damage and corrosion. The tilting ramp and drawbar of the car carrier are made of hollow sections, which gives rigidity and stability to the entire car carrier and affects its long life and trouble-free operation.





The PL35-5021 car carrier has a GVW of 3500 kg, therefore its load capacity enables transporting goods weighing up to 2725 kilograms having the length up to 5 and the width up to 2.01 meters. The car carrier is equipped with 2 braked axles.

The tilting ramp is equipped with shock absorbers that facilitate loading and unloading the vehicle. Optionally, the car carrier can be equipped with a one- or two-way hydraulic pump.



EQUIPMENT




The trailer, as standard, includes a support wheel, manual 1135 kg winch, wedges for blocking trailer wheels as well as overrun and parking brakes. Optionally, it can also be equipped with floor fillings made of riffled aluminium plate or anti-slip plywood, shock absorbers for axles, electric winch, hydraulic pump, wheel locks for the transported vehicle.

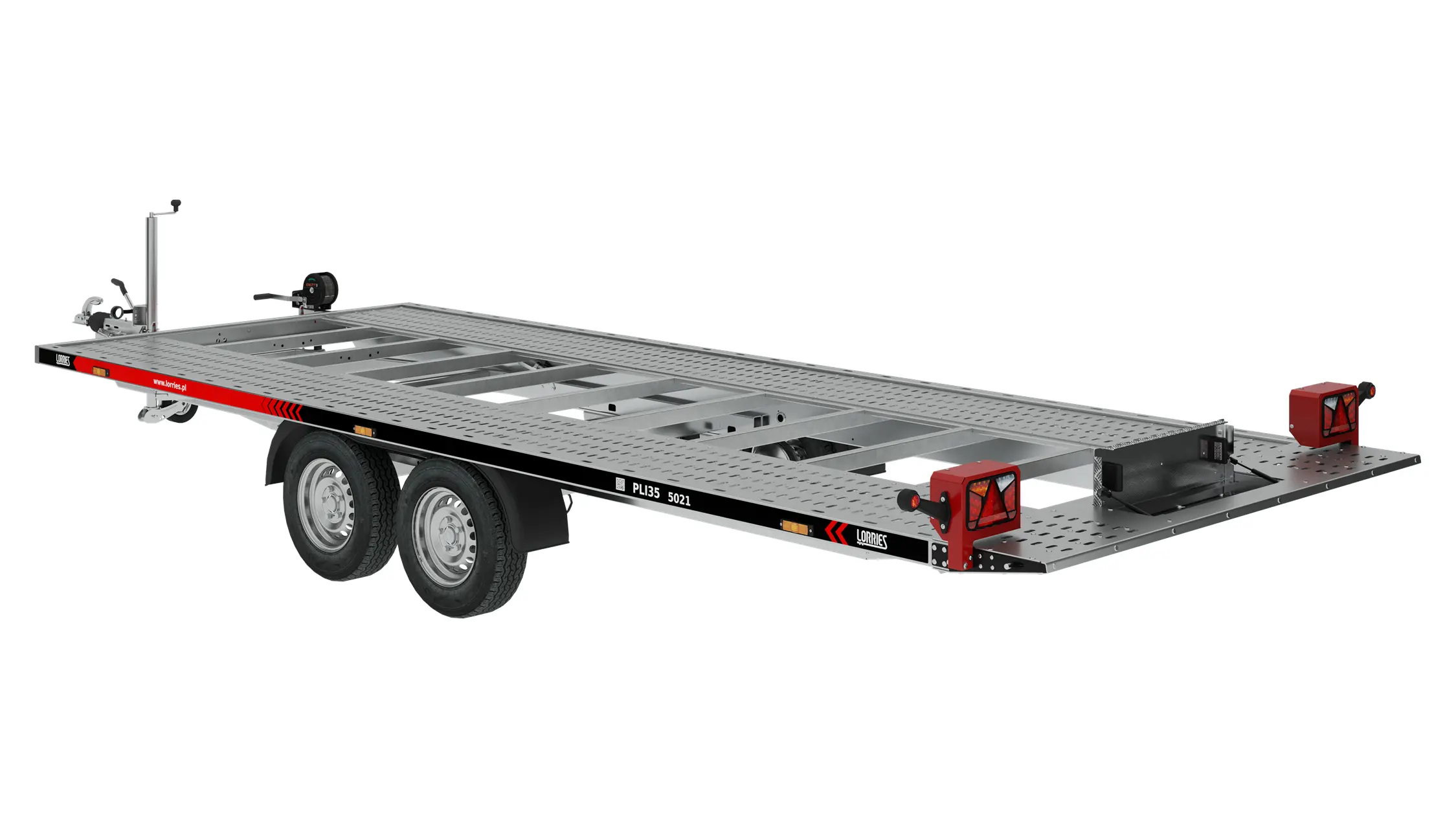

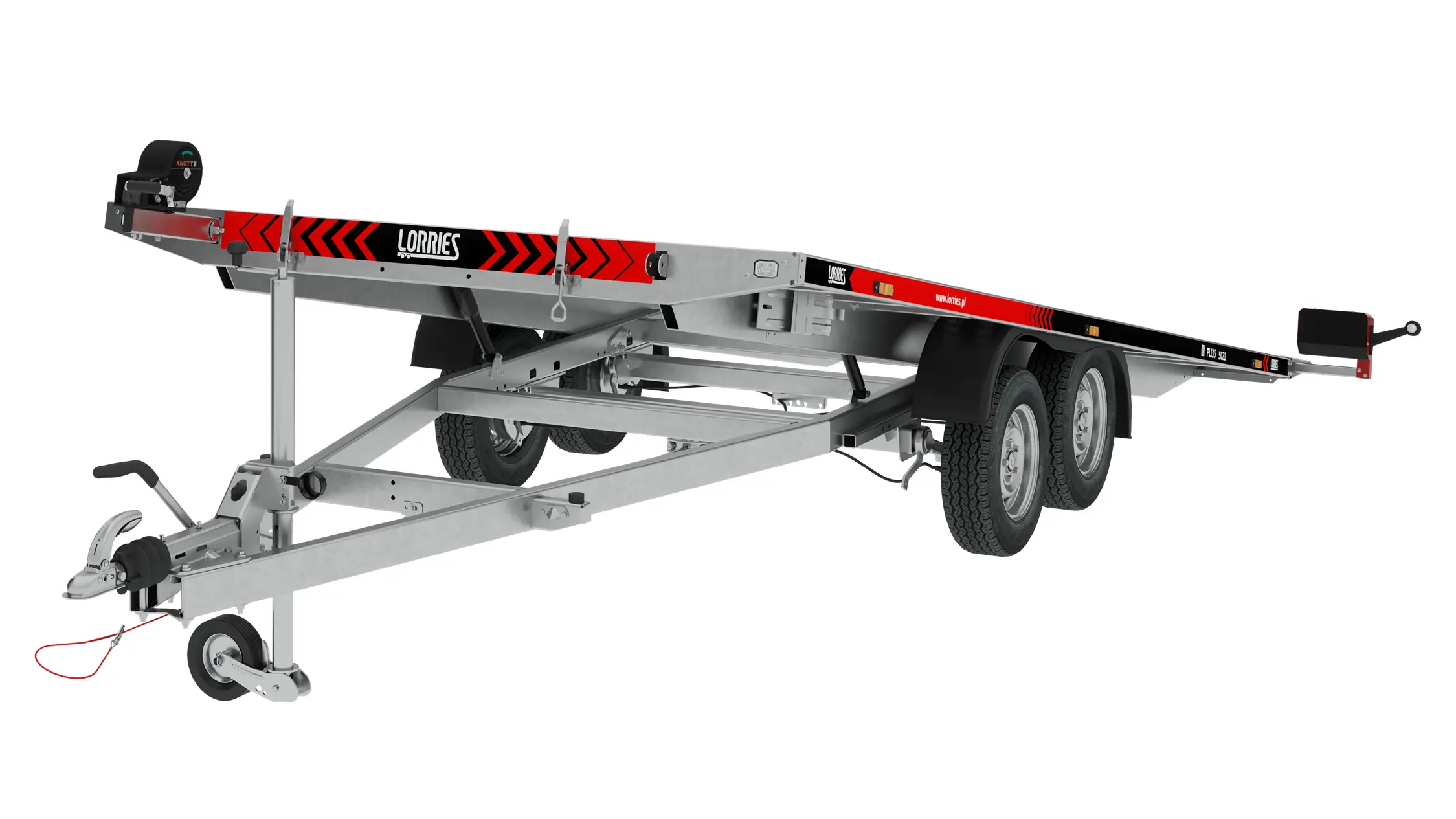

a modern tow truck trailer with integrated ramps and a spare wheel

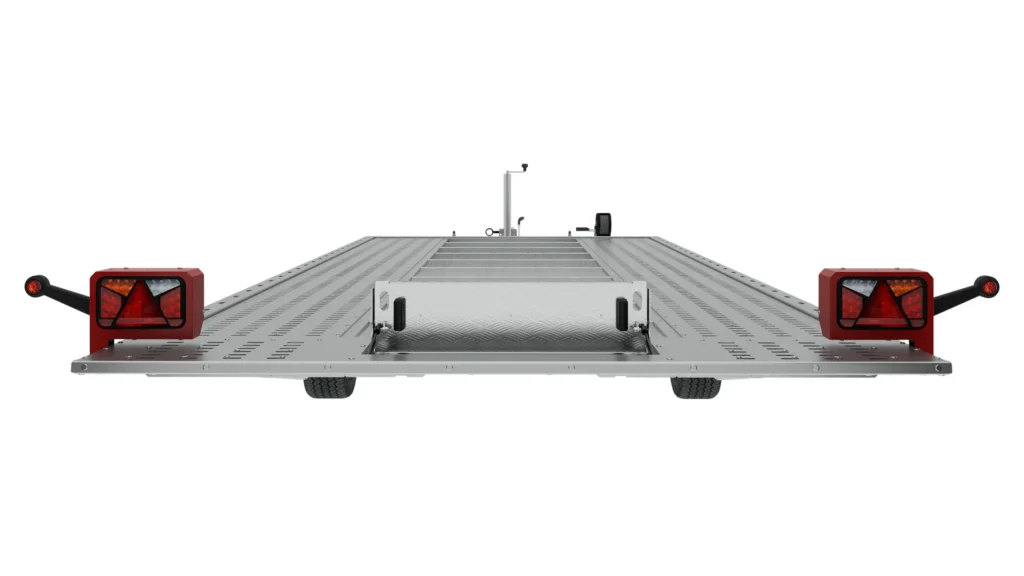

ramps integrated with the tow truck trailer and LED lighting in the tow truck trailer
tow truck with two axles - car axles manufactured by KNOTT



Note: The products presented in the photographs may differ slightly from the originals. The contents of the website are for information purposes only and do not constitute a commercial offer within the meaning of the Civil Code.

https://www.youtube.com/watch?v=A2WFp4CbQRM



Technical data
Trailer PLI35-5021
Gross vehicle weight [kg]
3500
Maximum length of the loading surface [mm]
5354
Maximum width of the loading surface [mm]
2160
Load capacity [kg]
2725
Complete kerb weight [kg]
775
External dimensions width x length x height [mm]
2160 x 6814 x 664
Number of axles
2
Axles type
braked
Wheels type
R13
Approach angle [degrees]
12.5°

Standard equipment

Overrun brake
Parking brake
Tilting lamp system
LED rear lamps
Wedge for blocking wheels of the car carrier
Jockey wheel
Manual winch
Actuators for tilting the inrun frame

Additional equipment

Waterproof and non-slip floor plywood
Anti-theft protection
Aluminum rims
Wheel lock
Aluminum floor filling
Spare wheel with mountings
Single-acting hydraulic pump
Double-acting hydraulic pump
10,000 LBS winch
4,500 LBS winch
Shock absorber with mounting
8,500 LBS winch
