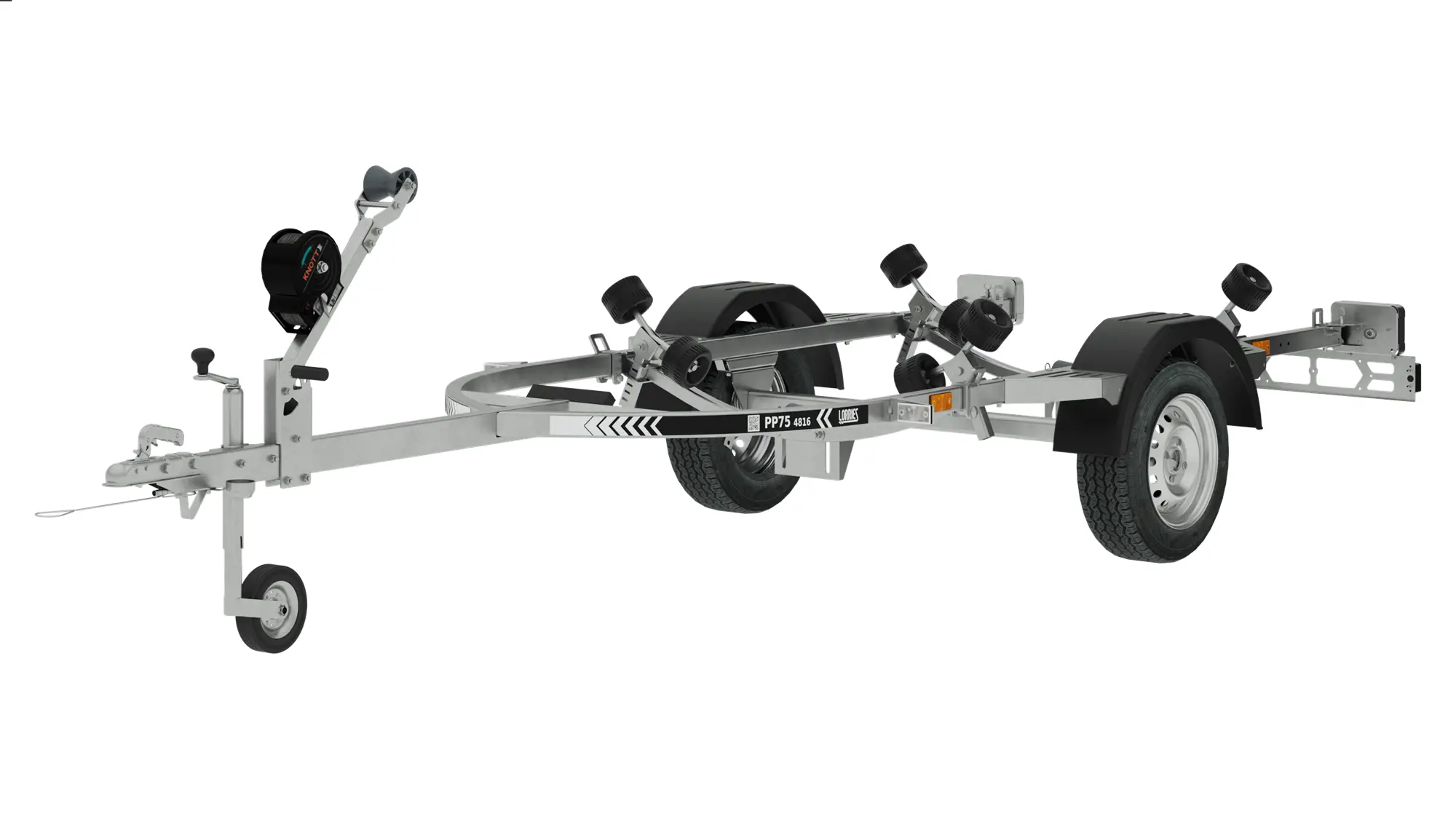

TRAILER FOR TRANSPORTING JET-SKIS EQUIPPED WITH ROLLERS

The trailer for transporting water scooters with rollers, model PP75-4816, can be used both by private persons and companies dealing with professional transport of water scooters - e.g. for sports competitions. It has a DMC of 750 kg. It can be loaded with a scooter or a small boat weighing up to 602 kg, length up to 3738 mm and width up to 1574 mm. The rollers mounted on it make it easier to launch the scooter.

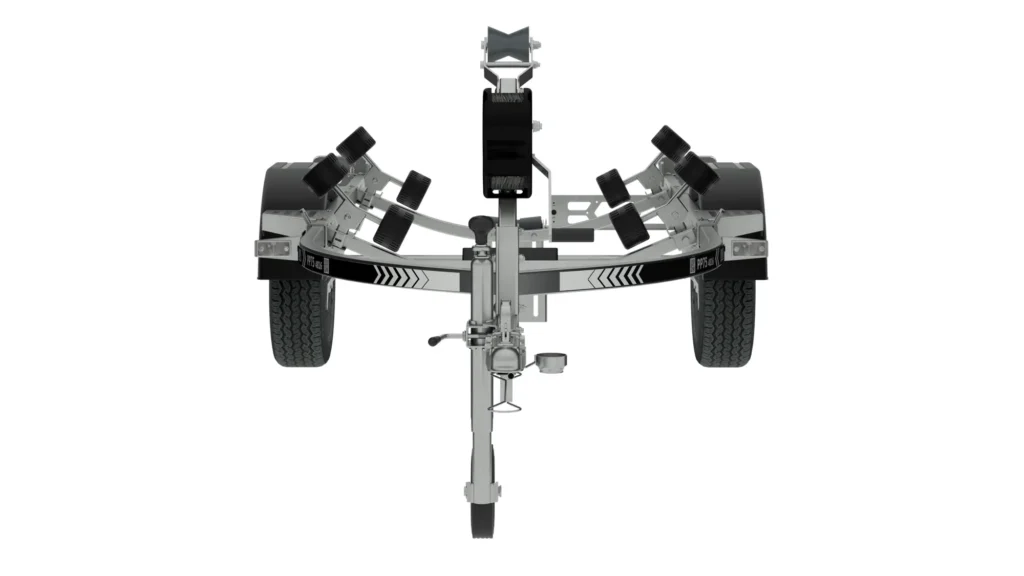

The scooter is transported on a solid and strong welded structure made of steel profiles. The front beam of the trailer frame has been tilted by 45 degrees, which reduces the risk of bumping the hull when the scooter flows over the trailer.

Side supports equipped with double rollers are adjustable in height and angle. Thanks to this, depending on the width of the transported scooter, the rollers can be set in such a way that they adapt to it. A rubber buffer is used in the front beam of the trailer. It's task is to protect the incoming water scooter from hitting the frame. To increase the comfort of use at the wheel arches, we have added side steps that facilitate access to the load and the operation of the scooter.

The trailer is protected against corrosion with a hot-dip galvanized layer. Optionally, it can be painted white, black or any other color from the RAL palette.

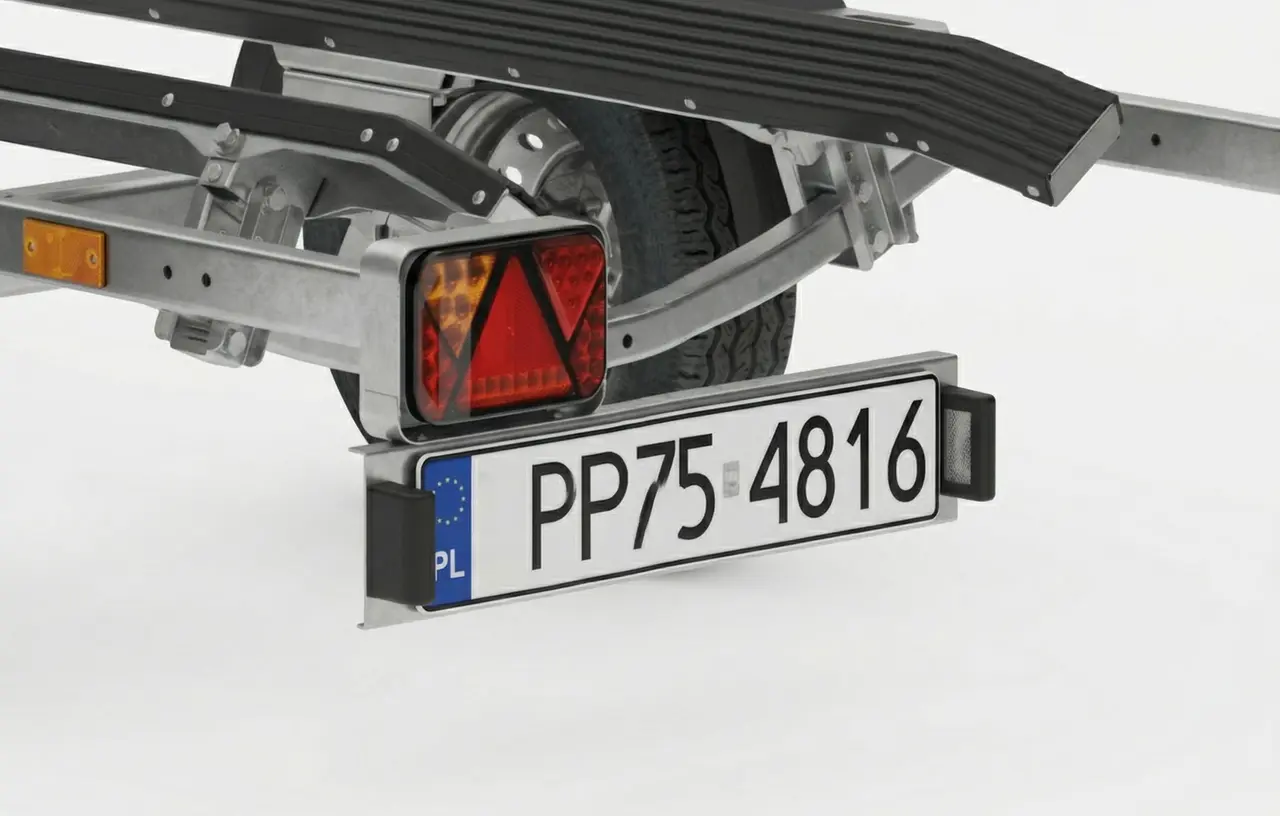

As standard, the trailer has been, i.a., equipped with tilting LED lamps. Thanks to this solution, there is no possibility of damaging the water scooter while arriving. LED technology extends the life of the lighting, and the Bayonet connectors used in them allow for easy removal of lamps, if necessary, and guarantee the waterproofing of the entire system. Lighting is an integral part of the vehicle and is intuitive to use. They can be easily unlocked and set in the appropriate arrangement enabling the introduction or bringing of a water scooter.

PRACTICAL SOLUTIONS

The trailer axle is equipped with the WPS (Waterproof system) — additional hub sealing, which protects the bearings against the water. This allows to significantly extend the life of the bearings, hubs and the axle itself.

The model is equipped as standard with 4 handles that allow to securely and confidently fasten the load with straps. The trailer can be equipped with additional 4 holders, which will allow even better and more effective hooking of the jet-ski from each side.

The model is equipped with durable rollers that guarantee a stable seating of the transported load. Depending on the center of gravity in the trailer, we can adjust the axle alignment in relation to the frame ourselves.



STANDARD AND ADDITIONAL EQUIPMENT

The trailer for transporting water scooters with rollers is equipped with a manual belt winch with an adjustable post. In addition, as standard, it has, among others LED lamps, support wheel, bow roller and R13 steel rims.

In addition to the usual amenities, it can also be retrofitted with a polyurethane bow and bottom roller, spare wheel with mounting, axle shock absorbers with mounting, additional belt mounting, aluminum front gangway, anti-theft protection or aluminium rims.

Note: In some car models, the trailer LED lighting may not work properly. This situation occurs most often in new car models and is caused by the low power consumption of LED technology. In order for the lights to work properly in the trailer, the hook should be equipped with an additional module for LED lighting. Lorries does not supply this module on produced trailers.

Note: The products presented in the photographs may differ slightly from the originals. The contents of the website are for information purposes only and do not constitute a commercial offer within the meaning of the Civil Code.
