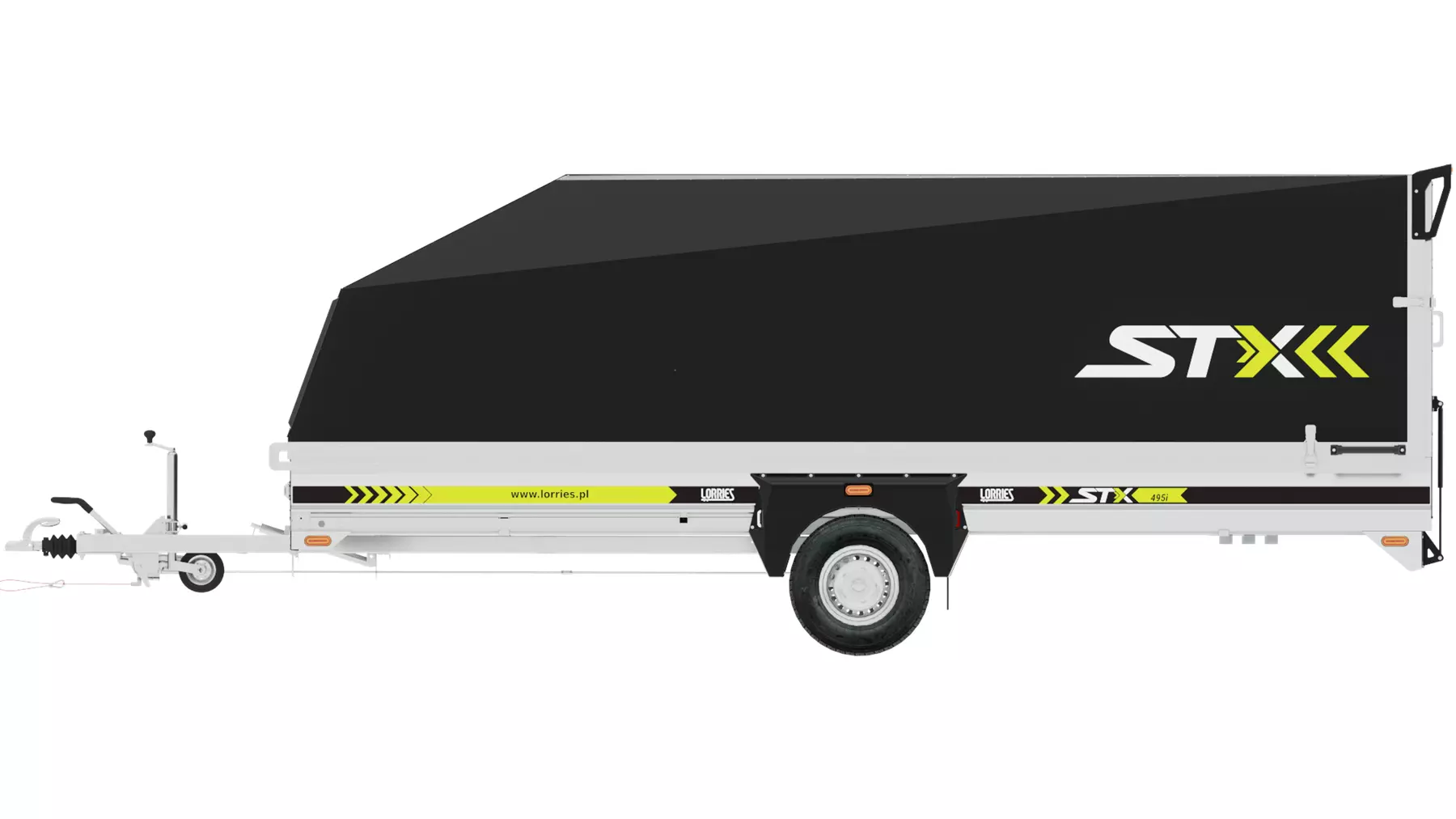

STX495i DROPPED TRAILER WITH COVER (ALUMINUM BODY)

Modern sideboard trailer with aluminum body STX495I, with GVM of 1,350 kg, is an excellent transport solution, combining durability and functionality. As a 1-axle, braked model, with a weight of 660 kg, it has been designed for stable and safe transport of various types of loads, including various types of vehicles, e.g. quads, snowmobiles with a total weight of approx. 690 kg. Thanks to its very diverse additional equipment, it is a real treat for sports fans.

DIPLOMA TRAILER WITH ALUMINUM BODY

STX495I is a tilting trailer. The platform tilts backwards and its approach angle is 11.5 degrees, which makes loading and unloading much easier, especially when entering various types of vehicles. Thanks to the fully welded platform and drawbar made of a strong closed profile, it ensures driving stability and durability of the structure. The whole is covered with a layer of galvanized with fire passivation, which effectively protects against corrosion, even in difficult conditions, thus ensuring long-term aesthetics and durability.

PROTECTIVE COVER IN STX495I SIDEBOARD TRAILER

Additionally, the STX495I dropside trailer model is equipped with innovative opening aluminum construction (cover), which provides exceptional protection for transported items against various weather and external factors. This solid construction not only increases the safety of the load, but also extends the life of the transported goods and givesprotection against e.g. rain, wind, UV radiation and stones.

The cover is also hinged, making it easier to load and unload goods, and its construction is made of painted aluminum for maximum weight reduction. The use of this type of housing significantly increases the versatility of the trailer, making it an ideal choice for a wide range of applications, from everyday use to specialist transport needs. The aluminum from which the body is made is additionally painted for additional protection against corrosion.

STANDARD EQUIPMENT FOR THE STX495I SIDEBOARD TRAILER

The STX495I trailer has spacious loading area. It is equipped with 25 cm high steel sides, of which the front and rear sides are open and fully removable. The side walls are structural elements and are permanently mounted. To tilt the platform, we use a strong trapezoidal lift, which is standard equipment.

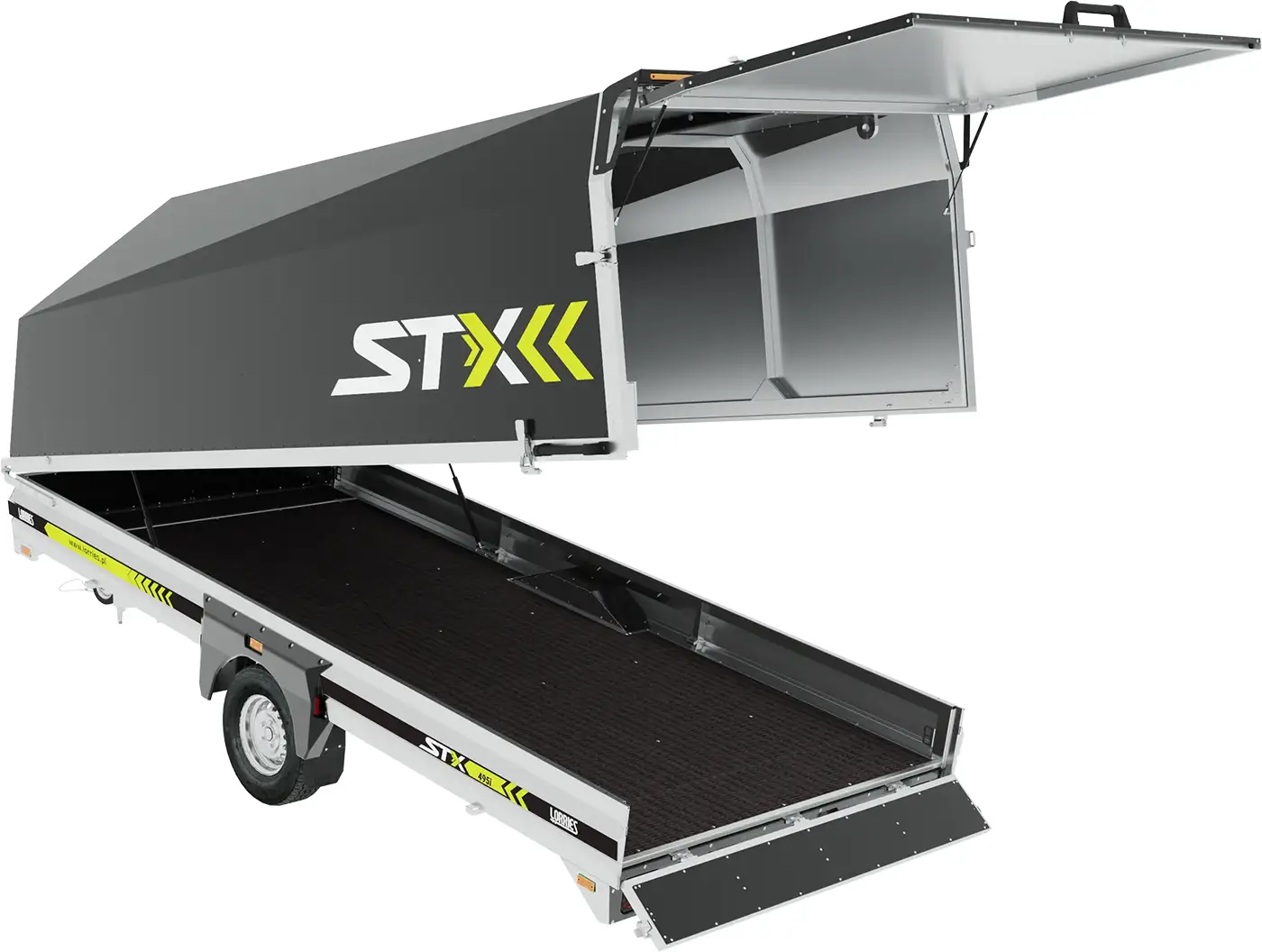

The body is opened using 2 actuators, thanks to which opening and closing is very easy. The standard equipment includes a standard rear side and a body flap that opens upwards supported by actuators. Inside the trailer there are 8 strong hooks, with which you can secure your load. The trailer is equipped with an overrun and parking brake, which increases control and safety while driving and standing. Thanks to the support wheel, maneuvering it is much easier

The trailer floor is made of waterproof and non-slip plywood guarantees ease of loading and its safety even in difficult conditions. As standard, the trailer is equipped with LED lamps, ensuring better visibility and road safety. The modern appearance of the model is emphasized by front and rear black covers made of plastic. They not only have a decorative purpose, but above all, they protect against mechanical damage, which is especially important during intensive use. The covers are placed both on the outside and inside of the front and rear sides.

ADDITIONAL EQUIPMENT FOR STX495I TRAILERS

The trailer has the option of reducing the approach angle by replacing the standard rear wall with a half-gang (+ body flap) or a full gangway (then the body flap is not present), which allows you to drive onto the trailer without tilting the platform. For increased safety, the trailer can also be equipped with anti-theft protection, spare wheel with mounting and a set of axle shock absorbers. Moreover, you can order it with an option additional painting in black, which will not only ensure a modern look, but above all will further increase its resistance to external factors.

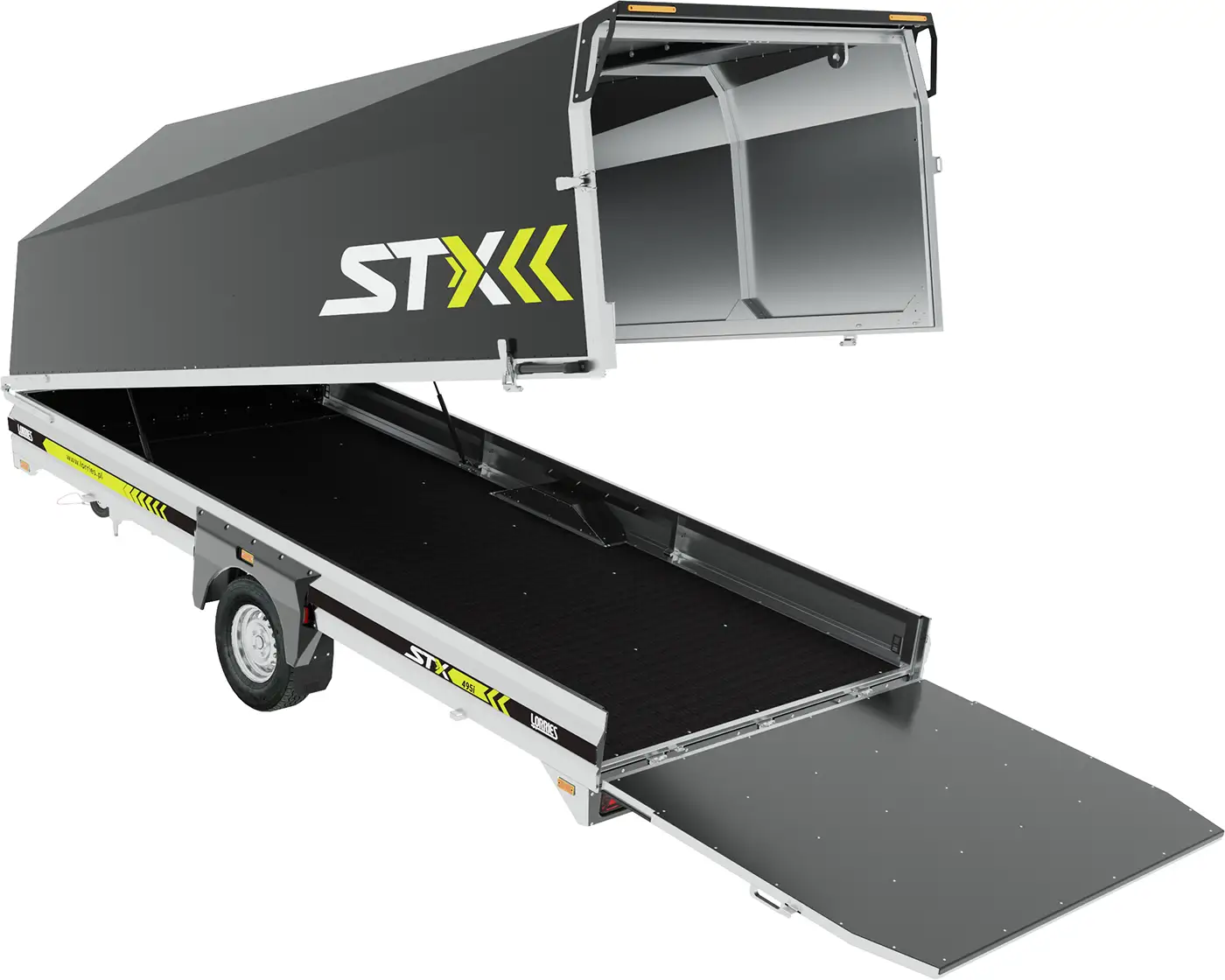

Full gangway

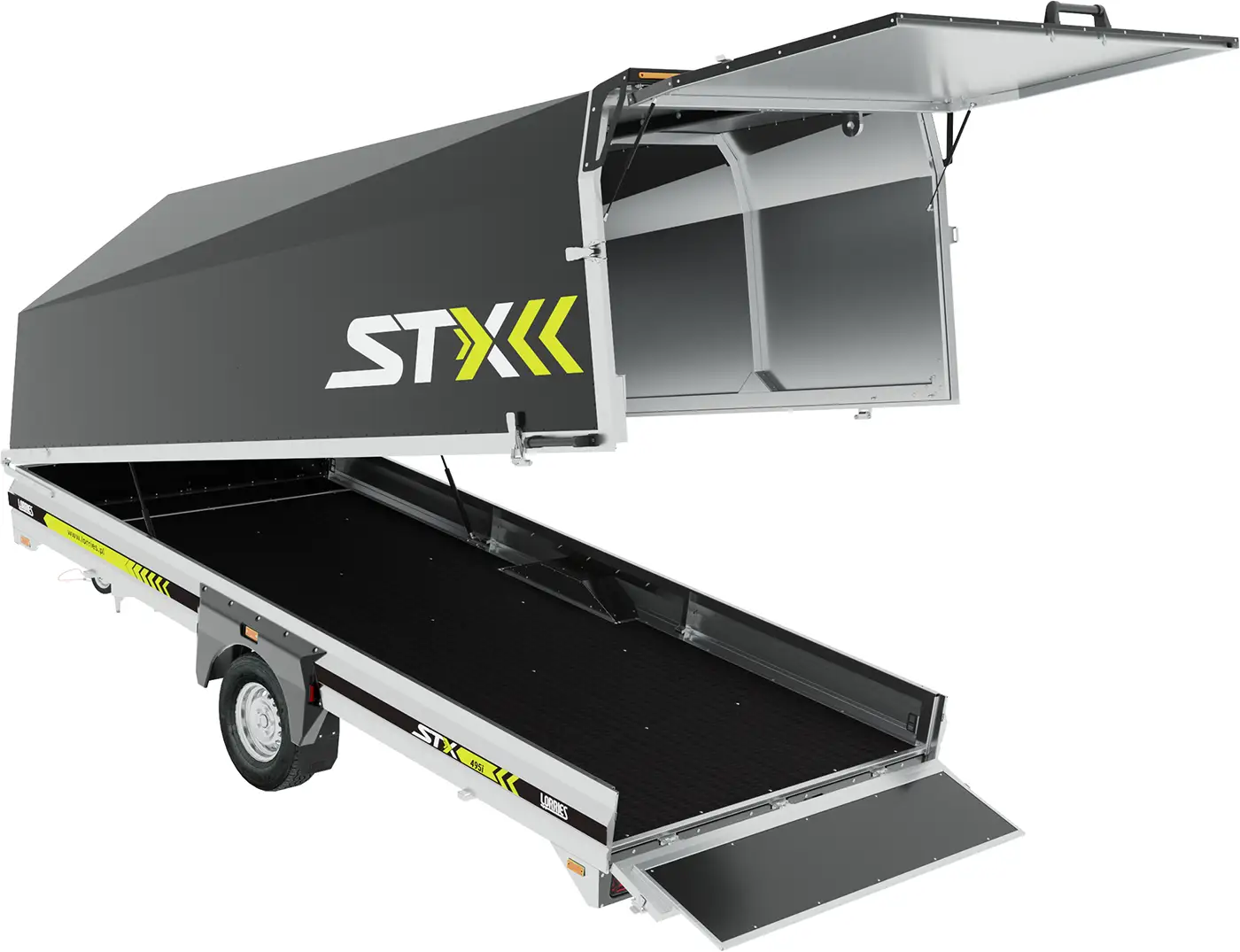

Half-trap + flap

Note: In some car models, the trailer LED lighting may not work properly. This situation occurs most often in new car models and is caused by the low power consumption of LED technology. In order for the lights to work properly in the trailer, the hook should be equipped with an additional module for LED lighting. Lorries does not supply this module on produced trailers.

Note: The products presented in the photographs may differ slightly from the originals. The contents of the website are for information purposes only and do not constitute a commercial offer within the meaning of the Civil Code.
