Sideboard trailer STX375o GVW 750kg

1

A tiltable side trailer with a GVW of up to 750 kg and a lightweight design allows for the transport of various types of cargo, as well as vehicles such as ATVs or snowmobiles.

dmc icon
up to 750kg
trailer length icon
3750 mm
trailer width icon
1500 mm

Modern STX375o tipper trailer, with 750 kg GVWis an excellent transport solution, combining durability and functionality. As a single-axle, unbraked model weighing 326 kg, it has been designed for stable and safe transport of various types of loads, including various types of vehicles, such as quads, snowmobiles with a total weight of approximately 424 kg. Thanks to a very diverse range of optional accessories, it is a real treat for sports enthusiasts.

UNIVERSAL BOARD TRAILER

STX375o is a tilting trailer. The platform tilts backwards and its approach angle is 11.5 degrees, which makes loading and unloading much easier, especially when entering various types of vehicles. Thanks to the fully welded platform and drawbar made of a strong closed profile, it ensures driving stability and durability of the structure. The whole thing is covered with a layer of zinc with fire passivation, which effectively protects against corrosion, even in difficult conditions, ensuring long-lasting aesthetics and durability.

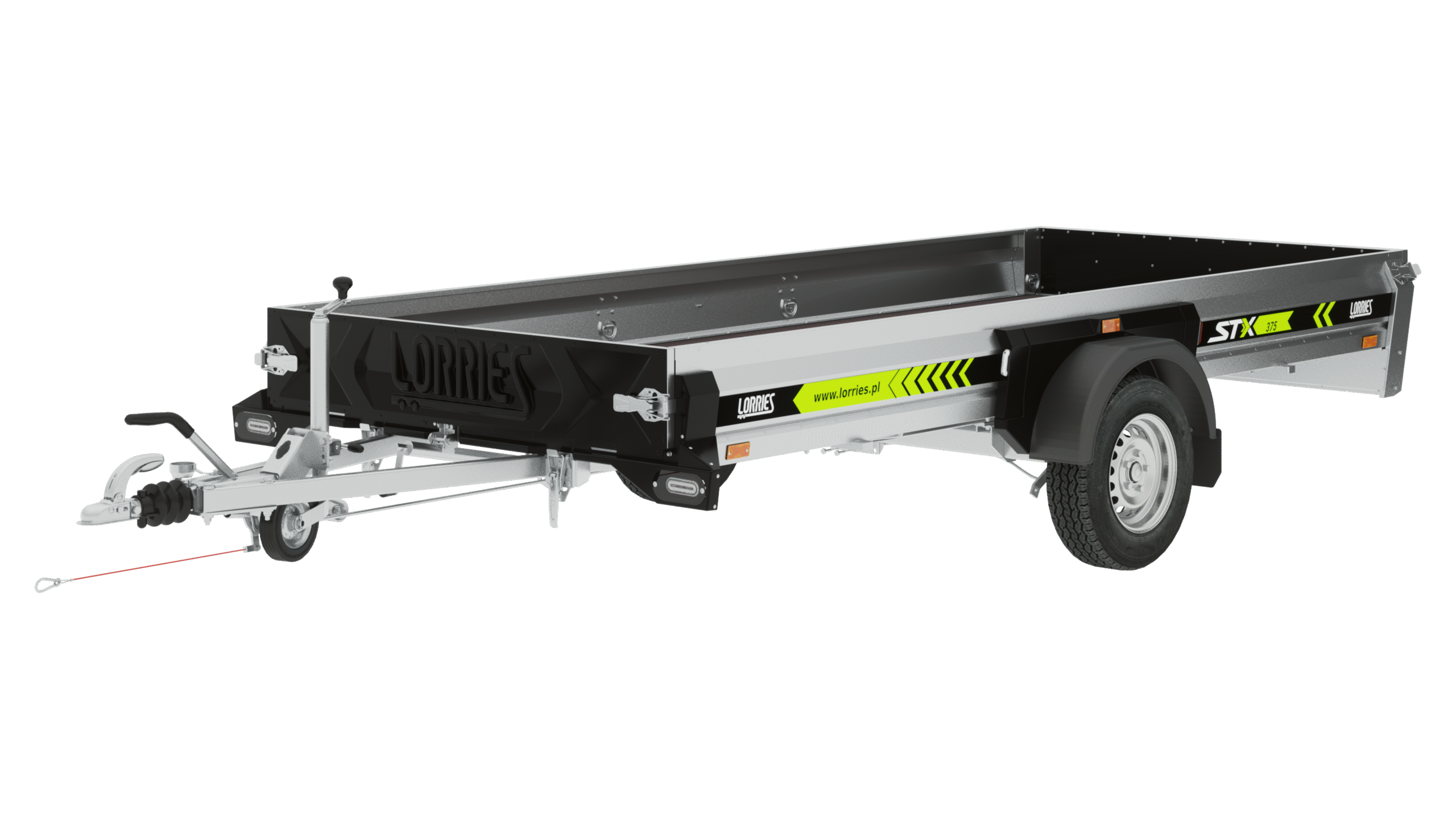

Black and silver single axle utility trailer The STX375o flatbed trailer has visible wheels, a tow hitch, yellow side safety markings, an open cargo box, and the Lorries and STX logo.



EQUIPMENT OF THE STX395I SIDE TRAILER

The STX375o trailer has spacious loading area. It is equipped with 25 cm high steel sides, of which the front and rear sides are open and fully removable. The side walls are structural elements and are permanently mounted. To tilt the platform, we use a strong trapezoidal lift, which is standard equipment.


There are 8 strong hooks inside the trailer, with which you can... you can secure your cargo. The trailer is equipped with an overrun and parking brake increases control and safety while driving and parking. Thanks to the support wheel, maneuvering it is much easier.

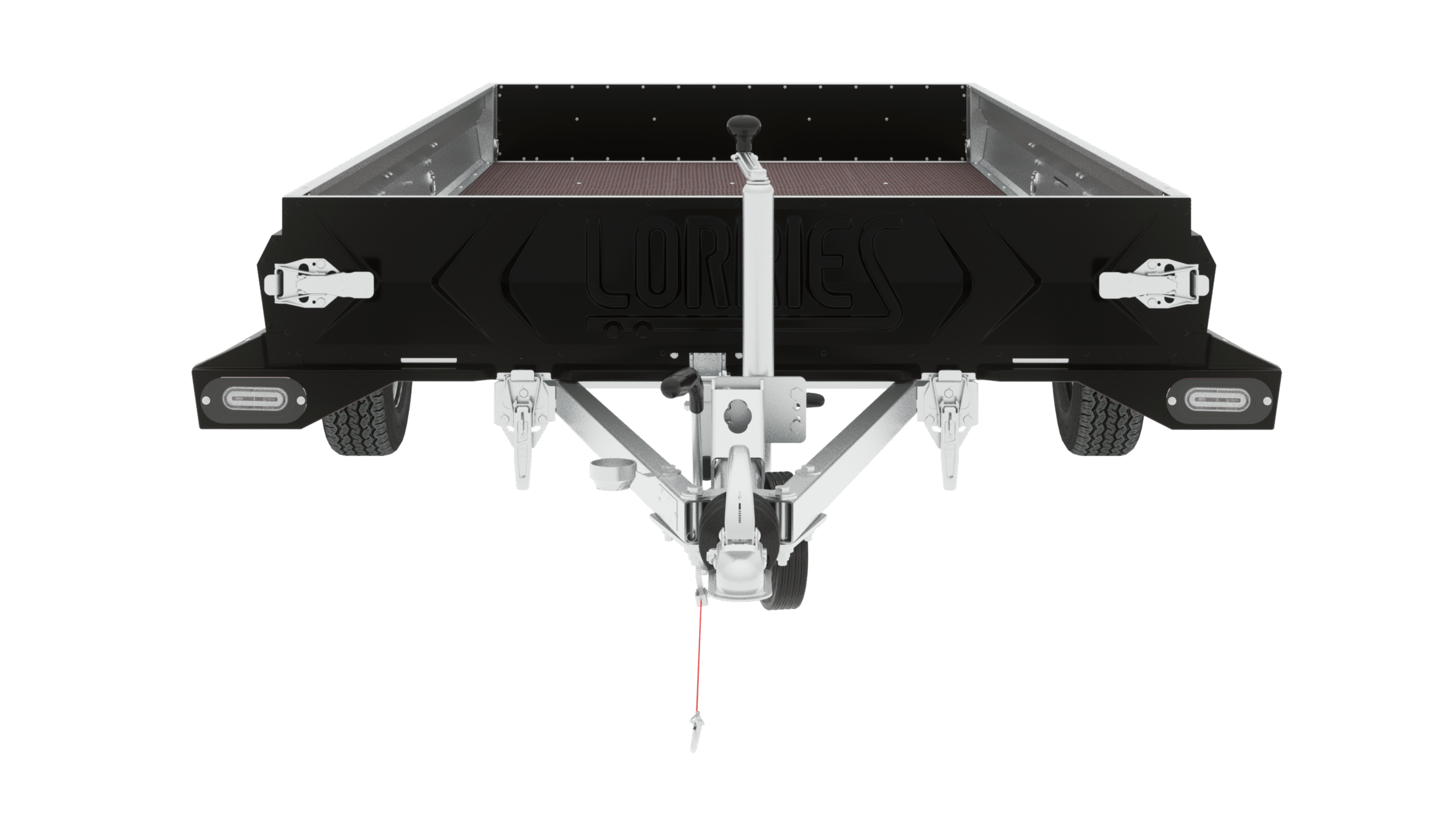

The black utility trailer Boat trailer STX375o is shown from the front with visible hitch, two wheels, side reflectors, and latches. The empty trailer stands on a white background.

The trailer floor is made of waterproof and non-slip plywood guarantees ease of loading and its safety even in difficult conditions. As standard, the trailer is equipped with LED lamps, ensuring better visibility and road safety. The modern appearance of the model is emphasized by front and rear black covers made of plastic. They not only have a decorative purpose, but above all, they protect against mechanical damage, which is especially important during intensive use. The covers are placed both on the outside and inside of the front and rear sides.



ADDITIONAL EQUIPMENT

For additional security of the transported goods, the manufacturer has provided a sealed, aluminum, openable body. For increased safety, the trailer can also be equipped with anti-theft protection, spare wheel with mounting and a set of axle shock absorbers. Moreover, you can order it with an option additional painting in black, which will not only ensure a modern look, but above all will further increase its resistance to external factors.

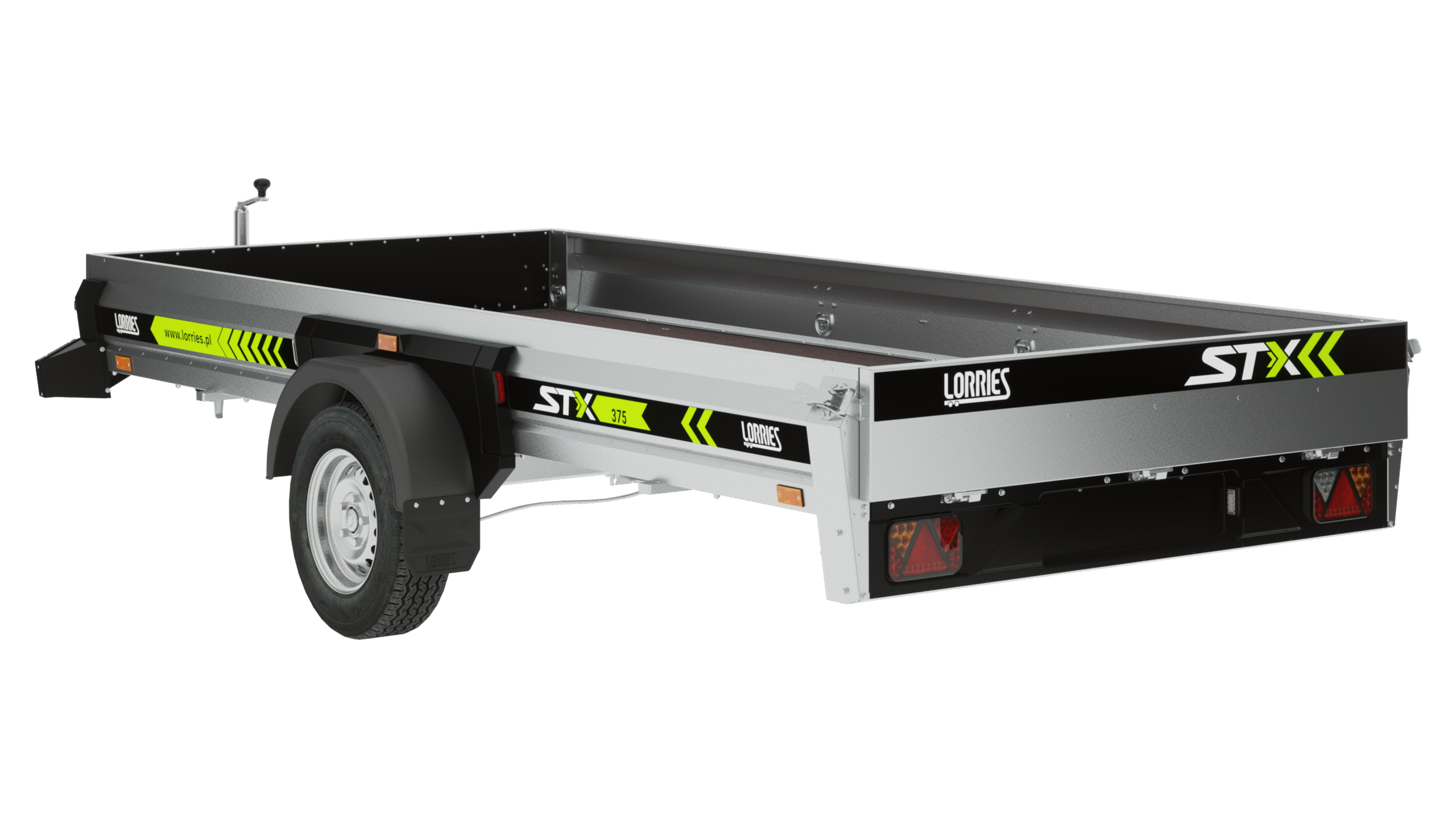

The silver-colored STX375o outboard trailer has black wheel fenders, a single axle, STX and LOARIS logos, yellow and green reflective stripes, and tail lights.

Note: The products presented in the photographs may differ slightly from the originals. The contents of the website are for information purposes only and do not constitute a commercial offer within the meaning of the Civil Code.

Functional

  • Tilting platform: It facilitates loading and unloading, which increases the functionality of the trailer.
  • Large number of belt holders (8 pcs.): Increases transport safety by enabling solid securing of the load.

Visual

  • Modernist look: A unique design that makes the trailer stand out from others.
  • Designer plastic covers: They protect the trailer from stones and at the same time add a modern look.
  • LED lamps: Modern lighting that provides better visibility and aesthetics.

Construction

  • Drawbar welded to frame: Provides a reinforced structure for more stable transport.
  • Galvanized: Additional protection against corrosion, even in painted versions, which extends the life of the trailer.
  • Passivation of zinc plating – Additional reinforcement of the anti-corrosion coating (unpainted trailers)
  • Closed profile frame: Increased structural strength ensures improved durability.
  • Lamp connector covers: Additional protection against mechanical damage, which improves durability and aesthetics.
Technical data
Sideboard trailer STX375o GVW 750kg
Gross vehicle weight [kg]
750
Maximum length of the loading surface [mm]
3750
Maximum width of the loading surface [mm]
1500
Loading surface height [mm]
857
Load capacity [kg]
424
Complete kerb weight [kg]
326
External dimensions width x length x height [mm]
1977x5267x857
Number of axles
1
Axles type
unbraked
Wheels type
R13

Standard equipment

Overrun brake
Parking brake
LED lighting
Handles attached to the sideboards
Jockey wheel
Waterproof and non-slip floor plywood

Additional equipment

Powder painting
Anti-theft protection
Spare wheel with mountings
Axle shock absorbers with mounts
