Dump trailer PW35-3016 (CONTAINER)

2

The PW35-3016 KONTENER tipper trailer with a gross vehicle weight of 3500 kg is a technically advanced model integrated with a galvanized steel container, designed for transporting the heaviest construction waste, rubble, and bulk materials.

dmc icon
up to 3500 kg
trailer length icon
2982 mm
trailer width icon
1600 mm
Price available at the dealer
Find a dealer
AVAILABLE FROM OUR DEALERS

DUMP TRAILER / TIPPER PW35-3016 CONTAINER

The PW35-3016 CONTAINER tipping trailer is the strongest variant in the Lorries container tipping series, offering a gross vehicle weight (GVW) amounting to 3500 kg. The trailer has been adapted for intensive use in the construction and municipal sectors, offering a cargo space with internal dimensions 2.98 m long, 1.6 m wide and 0.5 m high container sides. With a dead weight of approx. 900 kg, the vehicle provides maximum payload with full stability thanks to its two braked axles.

An aerial view of an empty silver metal utility trailer with the side panels down and the tail lights and wheels visible against a white background.

3-WAY KIPPING SYSTEM

The device is equipped with hot-dip galvanized container featuring rear tipping. The unloading process is carried out by an efficient, 4-stage single hydraulic cylinder. The system has an autonomous power supply from own battery, which is included as standard equipment. Two charging pins are brought out to the outside of the trailer, allowing quick battery service without having to open the cover boxes.

CONSTRUCTION AND DURABILITY PW35-3016

The base of the trailer was made of hot-dip galvanized sheet metal with a thickness of 3 mm, which provides extreme resistance to corrosion and mechanical damage when loading heavy materials.

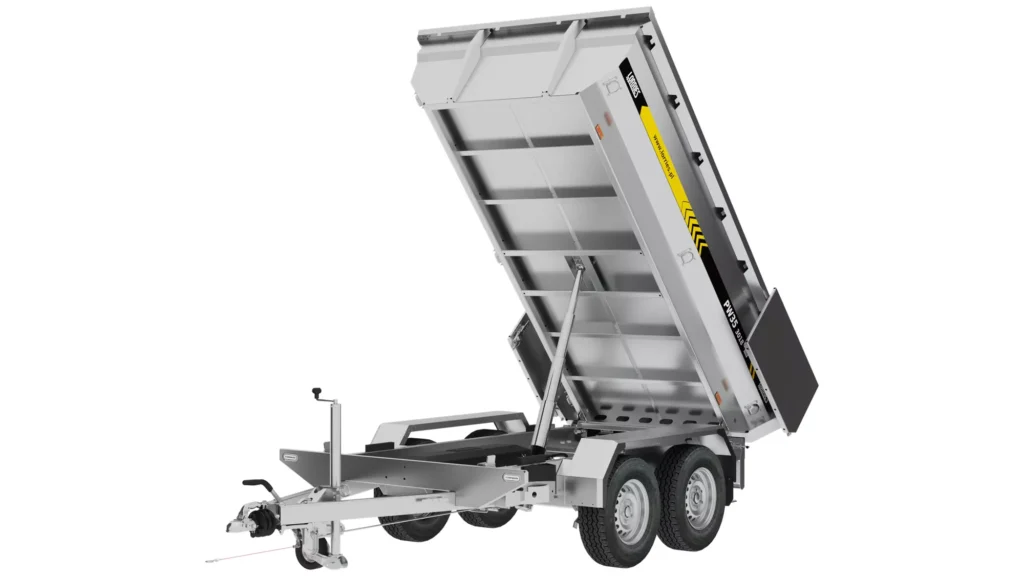

Silver two-axle utility trailer with a box raised at an angle, exposing the underside. The trailer is equipped with hydraulic supports and is designed for dumping or unloading materials.

PW35-301 EQUIPMENT6 CONTAINER

PW35-3016 CONTAINER Standard Equipment

Tipper trailer container as standard, offers a range of solutions to enhance productivity in tough construction conditions. At the heart of the vehicle is a robust, hot-dip galvanized container Equipped with a precision rear tipping system that is operated by an efficient, 4-stage hydraulic cylinder.

A key advantage of this tipper trailers with container is full operational independence - it is provided by own battery integrated into the loading system via external pins. Safe transport of bulk and bulky cargo is guaranteed by a container with a 3 mm thick sheets and the system 6 retractable floor hitches For stabilization with transportation belts.

To ensure maximum safety while stationary, each tipper trailer container has two rear supports and a support wheel for easy maneuvering. The modern standard of finish is complemented by a full LED lighting, durable 14 inch wheels with steel rims and plastic safety wedges under the wheels.

  • Backward kipping system at an angle of 49°
  • 4-stage single hydraulic cylinder
  • Own battery with two pins for charging outside
  • Hot-dip galvanized sheet metal container (3 mm)
  • Aluminum sides (35 cm) with removable posts
  • 6 retractable belt anchor hooks in the floor
  • Two rear supports to stabilize the trailer
  • Full LED lighting
  • Plastic wheel chocks
  • Jockey wheel
  • In addition, each trailer comes with a Powerbank in case the battery runs down
  • Electric hydraulic pump equipped with wired as well as wireless remote control
  • Current switch (hebel) with battery charge indicator

PL35-3016 Optional Equipment

For users looking for even more functionality, this model can be retrofitted with a Axle shock absorbers improving driving comfort, spare wheel With a dedicated mount.

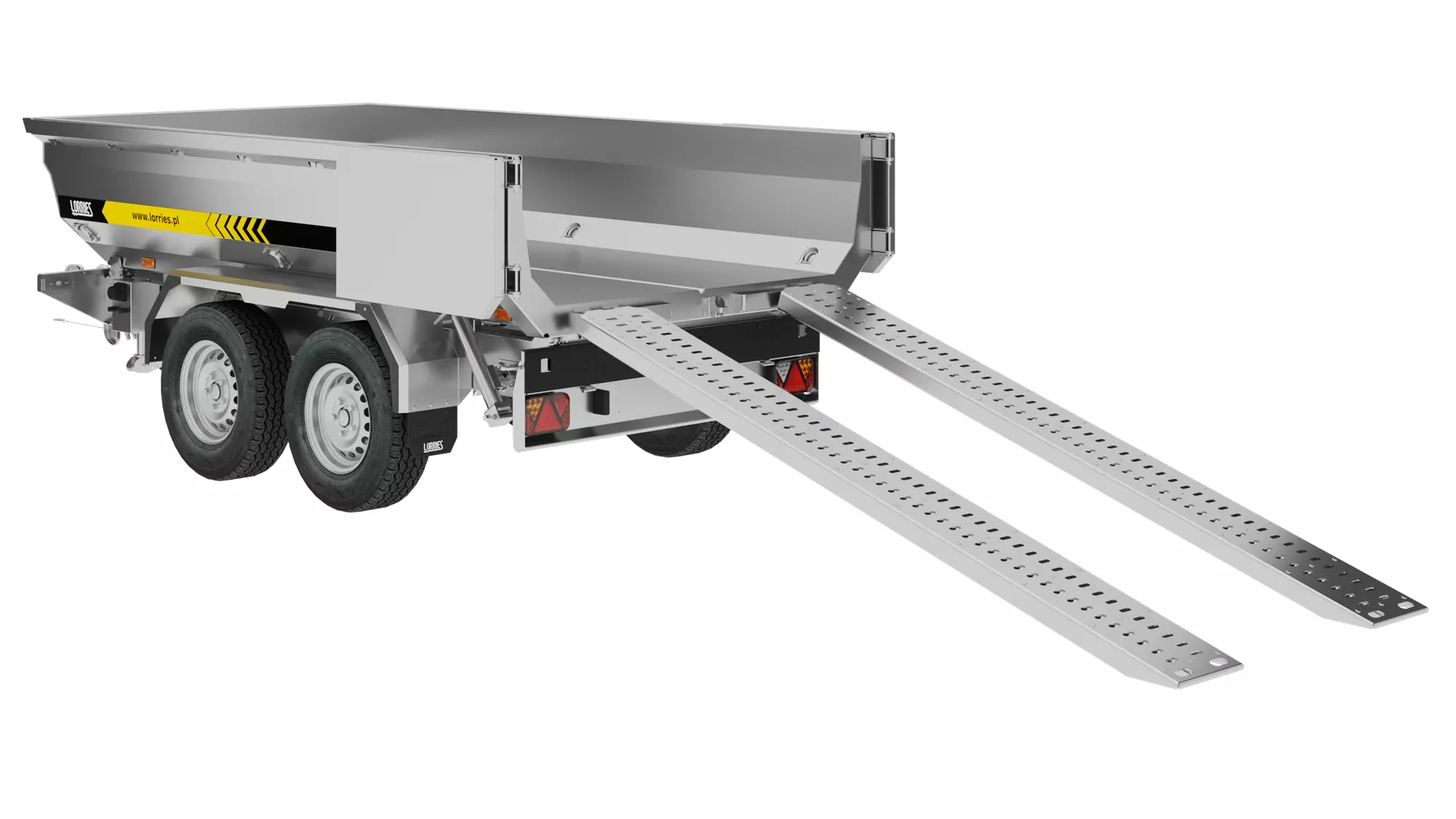

Silver utility trailer with two axles, raised metal sides and two perforated metal loading ramps extending from the rear, designed to transport equipment or materials.

Metal utility trailer with two perforated loading ramps extending from the rear, seen from the rear. The trailer has side walls and a black Lorries label on the back.
  • Axle shock absorbers with dedicated mounts (improved ride comfort)
  • Spare wheel with mounting bracket
  • Flat tarpaulin
  • 2 overrun traps with a length of 2.5m

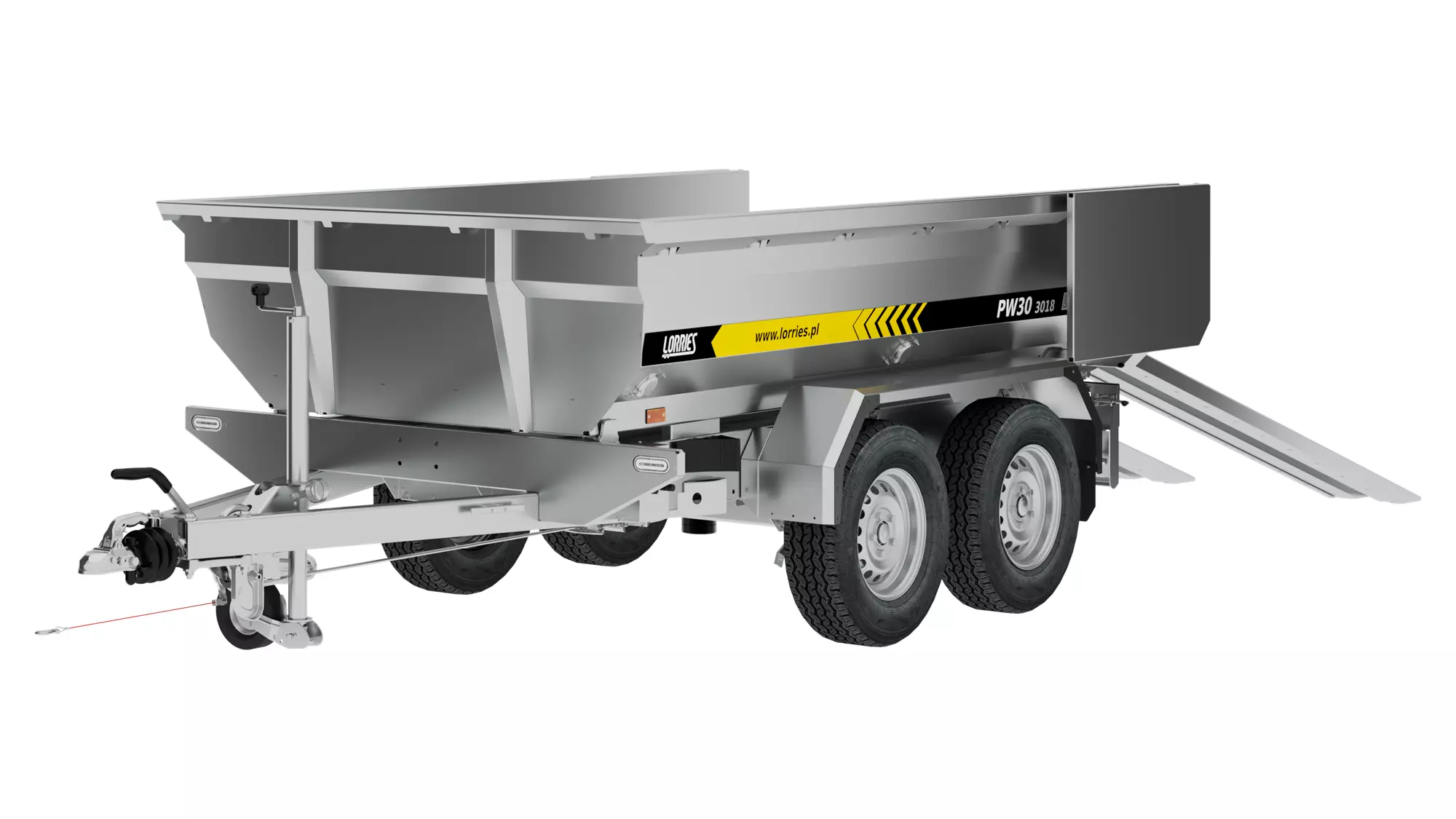

Silver dual-axle utility trailer with tilting cargo bed, black and yellow markings, and rear-deploying loading ramps. The trailer is designed for transporting materials and is depicted on a white background.
Silver dual-axle utility trailer with tilting cargo bed, black and yellow markings, and rear-deploying loading ramps. The trailer is designed for transporting materials and is depicted on a white background.

Note: The products presented in the photographs may differ slightly from the originals. The contents of the website are for information purposes only and do not constitute a commercial offer within the meaning of the Civil Code.

Functional

  • 3-way tipping: Flexibility to unload in any direction.
  • Proprietary battery: Operation independent of car power supply.
  • Charging pins: Easy access to battery charging from the outside.



Visual

  • LED lighting: Modern design and excellent visibility.
  • Retractable handles: Aesthetically pleasing and secure attachment of belts.

Construction

  • 3 mm floor: Durable hot-dip galvanized sheet metal.
  • 4-stage actuator: High lifting power and smoothness.
  • Two axes: Stability and safety at high tonnage.
Technical data
Dump trailer PW35-3016 (CONTAINER)
Gross vehicle weight [kg]
3500
Maximum length of the loading surface [mm]
2982
Maximum width of the loading surface [mm]
1600
Load capacity [kg]
2599
Complete kerb weight [kg]
901
External dimensions width x length x height [mm]
1793 x 4346 x 1286
Number of axles
2
Axles type
braked
Wheels type
R14

Standard equipment

LED lighting
Jockey wheel
Loading supports
Side
Wheel-lock wedge

Additional equipment

Anti-theft protection
Spare wheel with mountings
Axle shock absorbers with mounts
