Tow truck trailer PLBA35-5021

2

A tow truck trailer with aluminium sides for transport of various vehicles, e.g. racing cars, quads or construction machinery. Permissible gross weight 3,500 kg. 2 brake axles.

dmc icon
up to 3500 kg
trailer length icon
5028mm
trailer width icon
2160mm

TOW TRUCK TRAILER WITH ALUMINIUM SIDES

A tow truck trailer with aluminium sides for transport of various vehicles, e.g. racing cars, quads or construction machinery. Permissible gross weight 3,500 kg. 2 brake axles.

The tilting tow truck with 2 hooks to protect against self-acting tilting of the platform, and loading ramps made of "LOHR" type perforated sheet metal. The tow truck sides and ramps are made of aluminium, which warrants their durability, and at the same time does not overload the entire vehicle.

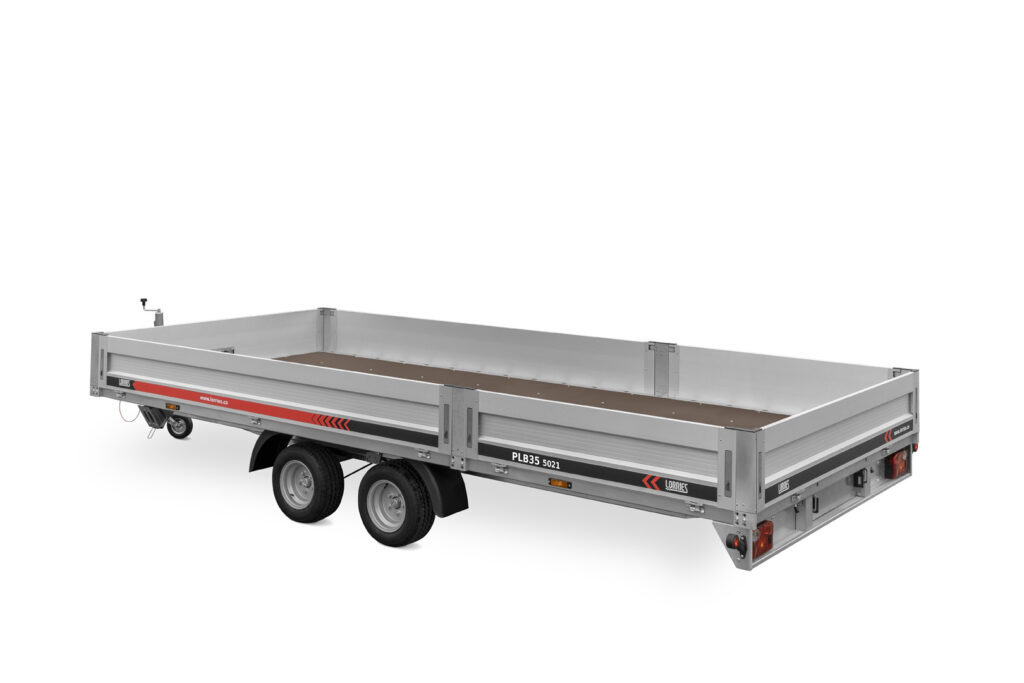

tow truck trailer with aluminum sides, GVW 3500 kg, 5 meters

SOLID CONSTRUCTION AND THOUGHT SOLUTIONS

The design of the tow truck with aluminium sides is extremely durable and reliable. It is based on two stringers connected by crossbars. The trailer frame and drawbar are welded of a closed profile and then subjected to a hot-dip galvanizing process. Thus the steel receives a protective layer, which strengthens it against mechanical damage and corrosion. The tilting platform with shock absorbers to facilitate the vehicle loading and unloading. In addition, it has a manual winch that helps to safely bring in or out the transported car. Optionally, the tow truck can be equipped with a one – way or two-way hydraulic pump.

The trailer sides' height is 35 cm, and they are made of aluminium. As a result, they are extremely resistant to daily use, and at the same time relatively light, compared to traditional steel ones. The aluminium side's hinges allow for its efficient disassembly, which ensures easier and more convenient loading of large objects. Along the loading platform of the tow truck trailer with sides, holes were placed for fitting the belts.

The tow truck's sidewalls are divided into two asymmetrical parts. With this division, the doors of the transported car can be easily opened once it's been placed on the tow truck.

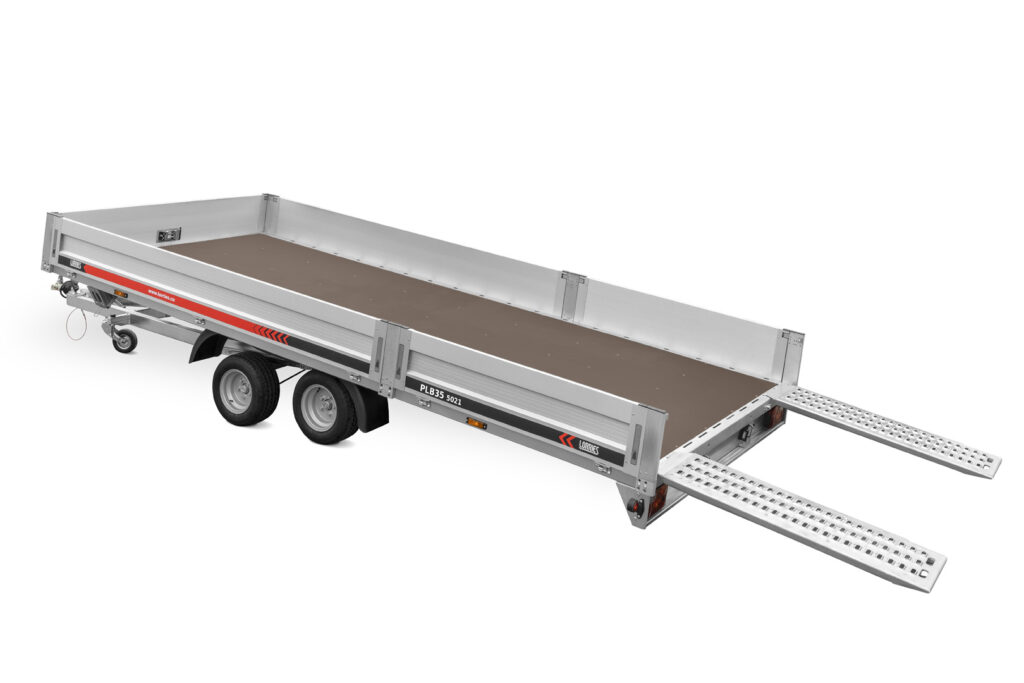

tow truck trailer with aluminum sides, GVW 3500 kg, 5 meters, with extended exits

fastening transport belts in a tow truck trailer
LED lighting in the tow truck trailer
tiltable license plate mount, tiltable plate in a tow truck trailer


TOW TRUCK TRAILER WITH ALUMINIUM SIDES EQUIPMENT

As standard, the trailer is equipped with durable and strong steel sides and aluminium ramps, which can be hidden under the platform for the drive duration. The floor is made of waterproof, non-slip plywood, which on request may be replaced with corrugated sheet. In addition, it also has a jockey wheel and wedges to protect against the tow truck's displacement when parked.

Equipped with aluminium sides, this model is ideal for all types of body. It can be retrofitted with a tarpaulin using a bevel to reduce aerodynamic drag.

tow truck trailer with sides and a tarpaulin with an aerodynamic slant

The tow truck with sides can also be equipped with a spare wheel, axle shock absorbers, electric winch, LED lamps, hydraulic pump and aluminium rims.

Note: The products presented in the photographs may differ slightly from the originals. The contents of the website are for information purposes only and do not constitute a commercial offer within the meaning of the Civil Code.

Technical data
Tow truck trailer PLBA35-5021
Gross vehicle weight [kg]
3500
Maximum length of the loading surface [mm]
5028
Maximum width of the loading surface [mm]
2160
Load capacity [kg]
2565
Complete kerb weight [kg]
935
External dimensions width x length x height [mm]
2226 x 6517 x 989
Number of axles
2
Axles type
braked
Wheels type
R13
Approach angle [degrees]
9.9°

Standard equipment

Overrun brake
Parking brake
LED rear lamps
Wedge for blocking wheels of the car carrier
Jockey wheel
Brackets for fixing load mounted in the floor
Waterproof and non-slip floor plywood
Manual winch
Actuators for tilting the inrun frame
Aluminum ramps slide under the platform
Side

Additional equipment

Anti-theft protection
Aluminum rims
Aluminum floor filling
Spare wheel with mountings
Single-acting hydraulic pump
Double-acting hydraulic pump
10,000 LBS winch
4,500 LBS winch
Shock absorber with mounting
Tarpaulin with aerodynamic bevel
8,500 LBS winch
